BETTER PICTURES SOON

Thumbnail Filmstrip of BAU4 Monster Truck 1500 HP EFI System UPRIGHT 4-3/8" Using Your Fuel Pump Images

Purchase BAU4 Monster Truck 1500 HP EFI System UPRIGHT 4-3/8" Using Your Fuel Pump

SKU: AD-BAU4-EFI-MONSTER
Monster Truck 1500 HP EFI System UPRIGHT 4-3/8" Using Your Fuel Pump

Name: BAU4 Monster Truck 1500 HP EFI System UPRIGHT 4-3/8" Using Your Fuel Pump
Brand: Alkydigger Fuel Injection-Superchargers-Ignitions
SKU: AD-BAU4-EFI-Monster
Price: 11000 USD
Availability: InStock

$11,000.00

13.4 gpm Waterman Mini Bertha similar to 110 slight larger +$1400.00

Add second NTK 02 Sensor +$290.00

Top EFI plate 8 injector instead of 16 Injector -$400.00

Use your Existing Birdcatcher w 2" Spacer furnished by Us -$1250.00

Billet-10" Upright Air filter +$530.00

MIERSCH MANIFOLD WITH FUEL RAILS TO ADD 8 INJECTORS IN BOTTOM IF DESIRED +$2950.00

Black Anodize Upright BAU4 +$300.00

Qty

Description

BETTER PICTURES SOON AS WE GET THE TOP PLATES IN

Monster Truck Race only - Supercharged - Methanol EFI 1500 HP Uses Your 13 gpm Enderle or other pump

For Blower Engines -Race Can Support Between 1400-1800 HP using Your existing 110 Enderle Pump

Option to Remove the Upright and Use Your Birdcatcher

Holley Dominator ECU * with wiring harnesses for 16 injectors

MIERSCH Manifold (Royal Ram) * OPTION TO MOVE 8 INJECTORS DOWN TO ENGINE AND 8 ON TOP

Fuel Rails for installing Manifold Injectors - Included but not installed. *

Aeromotive 13132 Regulator (will handle 6 gpm reduction if needed) Made in USA

North Coast Machine 8 Injector Billet Angled Top Plate for Full open top Blowers with 11+ inches of opening.

Option to use the 16 Injector upper Angled Injector Plate for Littlefield Blowers which shroud the rear Injectors. Made in USA

16- 220 lb EVI Injectors for using 8 Top and 8 Bottom

Idle Air Controller - Remote made in USA.

Dual -12 Fuel Filters one 30 micron and one 60 micron or a 10 micron if you prefer Made in USA

02 Sensor - with dual sensor option

Throttle Position sensor Billet - Mounts where Barrel Valve was

Gaskets - Studs -

OPTIONS to ADD:

Waterman 13.4 gpm Billet twin Gear Mini Bertha

Option to use your Existing Birdcatcher

Supercharged EFI applications from Alkydigger Fuel Injection are used successfully in all kinds

of applications from street to drag race applications. We have even proven our designs in the real life

torture test known as Hot Rod Drag Week. Our hands on experience tuning and racing these same

systems allow us to design a system for your application whether running E85/E98 or methanol and with sixteen injector nozzles.

Let us work with you to custom design an EFI system for your supercharged application.

Related Products

11134 Aeromotive Spur Gear Fuel Pump 16.5 GPM Compares to Waterman Lil Bertha- Most Popular — **11134 Aeromotive Spur Gear Fuel Pump 16.5 GPM Compares to a 990 Enderle on flow rating** $2,200.00

**4 Port Hilborn Style Upright- EFI Injector kit with Holley ECU, Aeromotive Pump** $8,750.00

**11132-ASSY Aeromotive Spur Gear Fuel Pump 21 gpm flow** $2,590.00

**AER-11138-assy 25 gpm Fuel Pump, Shut Off Valve, 2x An-08 Blocks,** $2,590.00

**19.5 gpm Fuel Pump, Shut Off Valve, 2x An-08 Block Shut off valve and bkt.** $2,590.00

10.0 GPM Brushless Spur Gear Fuel Pump with True Variable speed - 4900 hp Blown EFI GAS — **11198 10.0 GPM Brushless Spur Gear Fuel Pump with True Variable Speed Control, In-Line** $2,235.95

EFI Holley-Enderle Big & Ugly BAU3 Complete EFI Setup - for above 1300 HP to approx 2000 — **EFI Holley- Enderle Big & Ugly Complete EFI Setup - for above 1300 HP to approx 2000** $13,750.00

**Pro-Filer TALLor STD DECK BB Chevy Tunnel Ram with 5" BAU5 Upright** $5,400.00

4 Port Hilborn Style Upright-2-3/8" EFI or Mechanical Billet 4 Port — **Upright-2-3/8" EFI or Mechanical Billet 4 Port** $3,600.00

Upright Air Filter Assembly Pleated Washable With Internal Reinforcement — **Upright Air Filter ASSY For Enderle Upright Pleated X-Tra Duty Semi Waterproof.** $550.00

Enderle 3 Hole 5"- 5-9/16" Bottom tray & Spacers Upright Air Filter Base plate only - — **Enderle 3 Hole Upright Air Filter Base plate only** $250.00

BAU5 Upright Air Filter Element Pleated w Reinforcment- Fits All Enderle Uprights — **300896 Enderle BAU5 UPRIGHT Air Filter Element Pleated w reinforcment- Fits All Known Upright Enderle Injectors** $175.00

**OUTERWEAR Air Filter SOCK - Enderle BAU5 Upright BAU5 Injection Outerwear Pre-Filter 5"** $40.00

BAU- ENDERLE--AEROMOTIVE EFI w DOMINATOR ECU For UP TO 2200 hp Support — **ALKYDIGGER Big & Ugly ENDERLE--AEROMOTIVE EFI w DOMINATOR ECU For UP TO 2200 hp Support** $9,770.00

**4006-EF-16 Birdcatcher w Progressive Linkage Complete--for over 1500 HP** $10,197.00

**Blown .Bugcatcher EFI Complete-- 1250 - 1800 HP GAS 3 Butterfly Bugcatcher** $8,800.00

**JoeBlo Speed Billet EFI Injector Hat- Solid Billet EFI with Holley HP COMPLETE** $8,995.00

EFI Dual Throttle Body 4600 cfm COMPLETE FUEL SYSTEM w Holley HP , Fuel Pump, Regulator, Sensors, — **Dual Throttle Body 4600 CFM EFI EFI SYSTEM w ECU Harnesses, F Pump, Regulators** $7,900.00

**4 Port Hilborn MECHANICALFuel Injection Upright- 3" B Fly w optional 2-3/8" Version for EFI** $4,490.00

**Hoses - Set for Upright Enderle Blown Injector** $180.00

Enderle 3 Hole 5" Upright Injector w Pump and "Complete setup " for approx 25 lbs boost — **Enderle Upright 3 Hole Billet injection Blown Alcohol complete** $4,295.00

**Enderle 3 Hole 5" INJECTION w Pump and "Complete SETUP " for "High BOOST** $6,150.00

**EFI Holley -Enderle Big & Ugly 4-3/8" w 8 injectors- for 1250 or under HP** $8,100.00

**4 Port Hilborn BLOCK OFF Optional Block offs - 3" with O ring - will fit an original 4 Port also** $76.00

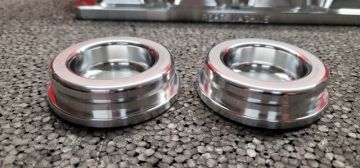

4 Port Hilborn - Optional 2-3/8" REDUCERS with O ring - will fit an original 4 Port also — **4 Port Hilborn style Upright- 3" injector 2-3/8" to reduce butterfly opening** $76.00

Enderle 3 Hole 5"- 5-9/16" Upright Air Filter Top Only Billet — **Enderle 3 Hole Upright Air Filter Base plate only** $189.00

**BAU5-Mount-Kit Enderle Mounting Kit -Studs-Spacers for 3 Hole 5"- 5-9/16" Upright Air Filter BAU5** $74.00

**EFI Holley HP -Enderle Big & Ugly 5-9/16" Tall w 8 injectors- for 1300 or under HP** $8,900.00

4006-EFI Birdcatcher w Progressive Linkage Complete-For Up To 1250-HP — **4006-EFI Birdcatcher w Progressive Linkage Complete--FOR UP to 1250-HP** $7,495.00

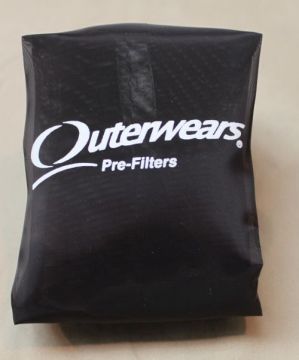

**OUTERWEAR Air Filter SOCK BAU4 w 4-3/8" B Flys Upright Injection Outerwear Pre-Filter 5"** $40.00
