SKU: TBS-3158-LS7

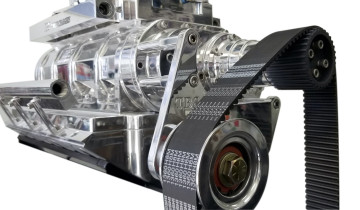

3158-REC -LS7 CHEVY 250 LOW PROFILE - LS7- REC. Port Blower w Carb-EFI-Options

LS7     Chevy- 250 Blower Setup  -  Complete Kit   TBS-3158-REC-LS7

Uses 8mm x 2"  wide  8mm drive belt cleated

Fits under hood  usually with no modifications - overall height of manifold, blower and carb adapter is 10.56"

A Carb or Bugcatcher will add about 5"  height

The Top on this blower is same as a 8-71  or 6-71  pattern-  whatever fits them, fits this as well  .

Solid Billet , with Billet 2 lobe rotors.    Mirror like polishing.   SEE 3358-REC-LS7  for High Helix

makes PLENTY of boost for any engine up to 500 cu in -  for Street or Marine use

Great Street sleeper blower to hide under the hood.

Holley Stealth   is a great efi   setup   or our 4005  Bugcatcher EFI

Dual ATM CARBS 750 w Linkage  Lines  Scoop w Filters

Street engines on pump gas will have to have 9-1 compression or  less or use our Torco Octane booster to raise 93 octane to 103

Also Used in High Compression LS   Chevy Race cars to add 3-4 lbs of boost to equalize Atmospheric

conditions when the air gets dirty, and/or  corrected elevation  and density altitude caused a negative impact on  your ET .

A 71 style Supercharger sticking out of the hood is always a nice addition, but it may not be what you are looking for.

With our 250 BilletCharger blower series we have solved that problem. Still producing the most boost in the industry

these dangerously powerful blowers come in a beautifully small package.  Perfect for tight clearances and low profile under-the-hood applications.

BILLET ROTORS ARE HARD ANODIZED AND COME WITH  TEFLON STRIPPING

BILLET CASES ARE HARD ANODIZED INTERNALLY

Specs:

• Billet Case -
• CNC machined 6061-T6 Aluminum
• Increased Strength over cast
• Hard Anodized Interior
• Mirror-Like Polish
• Low Profile Design (6.56 tall including Billet Carb Adaptor)
• Single or Dual Carb (4150 or 4500 *Please Specify when Ordering)
• 2 Lobe Rotors-Billet Extrusion    see 3358-REC-LS7   for High Helix
  • Teflon OD Stripping-Full length rotor shaft for increased strength
  • Maximum boost at low RPM
• Billet Front Cover
  • Oil Level Sight Glass-Oil Drain Plug-Polished Pressure Relief Valve
• Billet Bearing Plates
  • Increased Strength over cast
  • Hard Anodized
• Included:
  • 250 Billet Supercharger with Snout
  • Intake Manifold
  • Accessory Pulley 2V belt or Serpentine
  • Supercharger Pulleys (*Please specify engine size and desired boost when ordering)
  • Belt 8mm x 2" Cleated
  • Idler Assembly
  • All Necessary Gaskets and Hardware
  • you will need a Aftermarket Balancer with a 6 bolt Blower Bolt pattern.
  • We stock the  , Innovators West  Balancer  or a Blower hub.
  • Dual EFI Throttle Body Injection system  from Holley  works nicely
