SKU: TBS-3115
TBS-3115 192 Small Block Chevy "Mini" Blower Package Cogged Complete Setup

3115  TBS    SB Chevy- 192  Blower Setup  - "Mini Blower"   with 8mm Cogged Belt Drive  *

8.65"  from manifold to top

6462 Timing - MSD 6-BTM Boost Timing Master (alkydigger.net)    MSD Timing Master

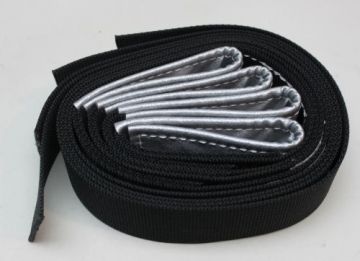

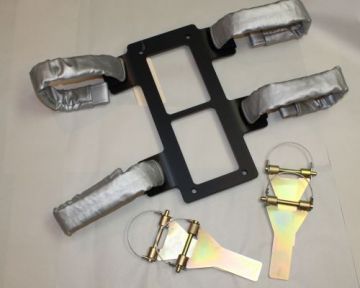

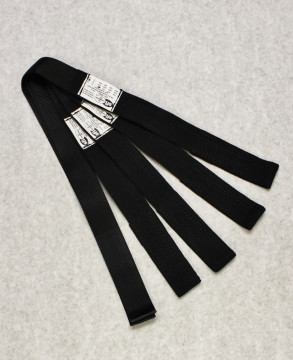

Restraints : Blower Restraint Kit Complete - for The Blower Shop 192 Blower (alkydigger.net)

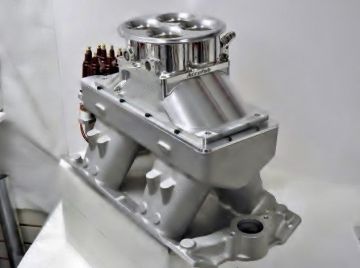

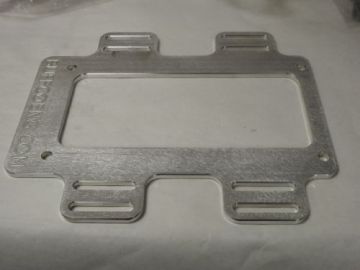

TBS-4366 EFI Billet Injector Plate for TBS-192 for Single Throttle or Enderle Injection (alkydigger.net)   EFI Plate

Used for under hood clearance   also used on   Bracket cars to keep ET consistant in changing weather .

* Does not fit with Vortec  or Fast Burn Heads.   *

Race or Street   -  commonly used on Alcohol  high compression Bracket Cars to enhance the atmospheric changes .

Works with gas, E-85 or Methanol --  For use with short water pump-  Can be modified for long pump-  extra 3 weeks  time

Will make up to 11 lbs boost on a 383   about 10 lbs on a 400    12 lbs on a 350

this setup has a 2V Accessory drive         see   #3111  for serpentine type accessory drive

192 SMALL BLOCK CHEVROLET- 2V STREET 8MM (#3115)

Our TBS 192 Low-Profile series is specifically for small block Chevrolet engines. Designed as a mild street application to fit under stock hoods on hot rods, and comes as a complete kit for one convenient price.

192 8MM blowers are showing great performance on small block drag racing applications as well. The kit includes the 192 supercharger, manifold, and all necessary drive accessories required for assembly. This 8MM drive kit includes both 8mm pulleys, ribbed style drive belt and a 2V accessory pulley so you can drive two V-Style accessory belts off the crankshaft.

Designed for SHORT WATER PUMP, single carbureted street, marine, or drag race application. The 192 is a max 10lb boost application.

FITS CONVENTIONAL 23� CYLINDER HEADS FOR SMALL BLOCK CHEVROLET.

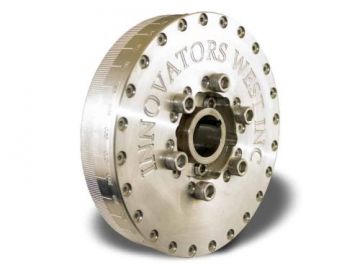

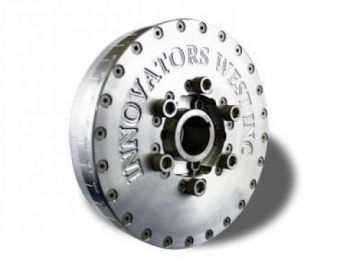

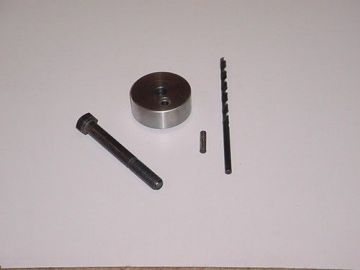

We stock Innovators West Harmonic Balancers and RCD Blower Hubs Suggest our Pin kit to pin the crankshaft, or our Innovators West Blower Balancer ,  or RCD Blower Hub  .
