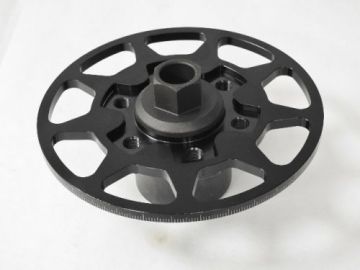

Thumbnail Filmstrip of 202403-04-assy RCD Blower Hub assy. - Big Block Chevy Hub with Bolts for use on all BB Engines Images

Purchase 202403-04-assy RCD Blower Hub assy. - Big Block Chevy Hub with Bolts for use on all BB Engines

SKU: RCD-202403-04-Bolts
Hub - RCD Big Block Chevy Blower Hub with bolts for use on all setups Crank Hub Will Accept Crank Trigger Wheel

$324.00

Description

RCD BB Chevy Long Blower Hub -04 with mount bolt 202403-04 and 6- Pulley 12 point bolts - 201000-0018

typically used with the 7" Crank Trigger Wheel , this hub pushes the pulley forward by 1/2" over the Short -02 hub.

Bolt with 200,000 psi tensile strength - http://www.alkydigger.net/proddetail.php?prod=RCD358850-38 included

Our crank hubs are machined from heat treated chrome-moly steel billet.

Each hub has two 1/4” keyways 180° apart, six 3/8-24 threaded holes in an evenly spaced pattern and a black oxide finish.

A stepped profile is machined around the holes for weight reduction and to lock-on the degree ring.

Allows the installation of the 7" RCD Crank Trigger Wheel

http://www.alkydigger.net/proddetail.php?prod=RCD202403-04.kit kit
