MSD Ignition Coil - HVC-3 Series - Black
Works with 8001 Ignition

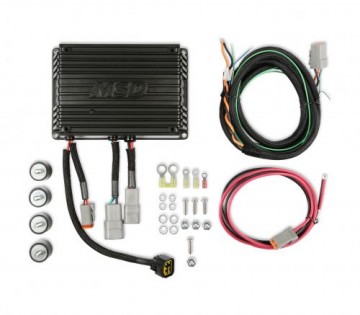

Use with MSD Power Grid 600 Single Channel - PN 8001
Emissions
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
- Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. See Emissions Details
The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
Features:
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control or Pro 600 Single Channel - P/N 8001
- New U-Core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistant compound for vibration resistance
- Windings are encased in fracture resistant compound for vibration resistance
- Dupont Rynite housing with isolated tower and brass primary terminals
- Supplied with mounting hardware and rubber shock mounts
- Built-in Current Sensing when used with MSD Pro 600 Single Channel (8001)
