    Professional Leakdown Setting Tool for Mechanical Fuel Injection with -6 & -8 Fittings
    Professional Leakdown Setting Tool for Mechanical Fuel Injection with -6 & -8 Fittings

    Thumbnail Filmstrip of Professional Leakdown Setting Tool for Mechanical Fuel Injection with -6 & -8 Fittings Images

      Purchase Professional Leakdown Setting Tool for Mechanical Fuel Injection with -6 & -8 Fittings

      SKU: Leakdown-AD
      Professional Leakdown Setting Tool for Mechanical Fuel Injections-Leak Down tests -6 and -8 AN USA

      $226.00





      Professional  Leak down Tester for Hilborn-Enderle-Crower-Algon- Engler- Kinsler -Rons    A MUST for any Mechanical Injection

      USA

       Equipped with : -6AN and -8 AN fittings included ---Check ANY   barrel valve leakdown in order to set your idle .

      Test Valves for accurate opening pressures

      "A MUST HAVE for INJECTION TUNING"

      Reads correctly :  30% =30%   not backward like some others.

      Quit guessing at your flow and leak down!

      A racer's must when it comes to Troubleshooting and Tuning your System!

      Easily checks the following components:
         *Main Checks
         *High-Speed Lean-Out Checks
         *Enrichment Checks
         *Idle Checks
         *Barrel Valves
         *Cylinder Leak Down
      Measure your leakdown and flow pressure with this gauge.
      When setting up a mechanical injection, you need to set your leakdown percentage.
      This gauge enables you to do just that!

      You can check your opening pressure and cracking point of your bypass valves, secondary valves, and Hi Speed lean out valves.
      This gauge is included in my Set Up Kit for setting up a Hilborn or Enderle Injection system.

      Set up with #6 fitting #8 AN Fitting
      With 18" hose with #6 and #8 fitting for Barrel Valve
      Comes with male fittings to attach to Female #6AN and #8AN
       INSTRUCTIONS :
      How to use Alkydigger'S  Leakdown Tester to set  THE  Barrel Valve.
      • Hook the outlet hose to your inlet fitting on THE barrel valve.
      • Cap off the other two   check valves.
      • Put air hose with at least 100 psi on to the leakdown tester.
      • Adjust the left gauge to exactly 100 psi.
      • Read the right gauge for what you want the Leakdown %  to be.
      • Make adjustments to the connector rod between the butterflies and barrel until you achieve the desired leakdown %.
      • Open and close the Barrel Valve  several times making sure that your left gauge did not wander off of 100 psi.
        • If it did, then re adjust the leakdown percent until it is what you are trying to achieve.
        • Richer ( more leakdown)  slows the idle  DOWN  Leaner ( less leakdown)   speeds up the idle.

      Call Alkydigger for suggested percentages for various combinations.

      Alkydigger Fuel Injection-Superchargers-Ignitions: Wrong type of Leak Down Tester Problems � Very Costly

      Basic Enderle Barrel Valve Leakdown and Butterfly Setting (alkydigger.net)





      ( Do not attempt to use leakdown testers made by Harbor Freight )  they last about one use most of the time .


      Related Products


      Flow your nozzles - Simple device to put on your leakdown tester to compare nozzles
      Check Fuel Pressure at your nozzle - Fuel Pressure Memory Gauge Kit 0-100 PSI with -3 male and female to hook to each nozzle $45.00

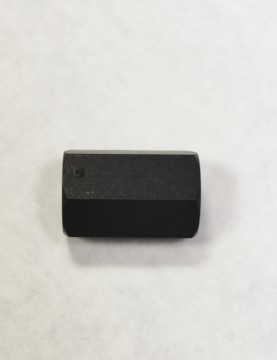

      6AN to 14MM Female Coupler to Change Your Leakdown tester to -6AN
      6AN to 14MM Female Coupler to Change Your Leakdown tester to -6AN $15.00

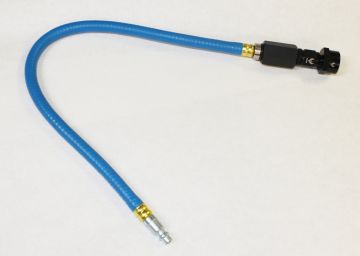

      Leakdown Tester Replacement Hose for Mechanical Fuel testers
