Thumbnail Filmstrip of Jesel LS Chevy Fuel Pump Mount Kit for Jesel Belt Drive Std & .388" Raised Images
Will Accept Any WATERMAN Hilborn-Enderle-Kinsler-Rons , Aeromotive, Rage, Fuel Pumps-
complete kit-For STD. Height and .388" RAISED CAM LS Chevies
Will drive RCD and Enderle Angle and front drives.
This is for LS 1 , 2 , 3, 6, 7, LSX Std, or .388" Raised height cam - Drop down option

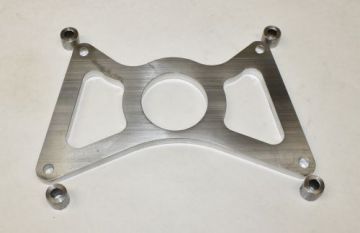

Comes with mount plate, 4 spacers, Jesel Drive Spud, and a 3"
short extension to guard against misalignment. Comes forward approx 4-1/4" including the extension.
You can use it without the extension if you like.
At the widest point : 8.5"
Center to center bolt holes on the widest side: 7-7/8"
At the narrowest point: 6-3/4"
Center to center bolt holes on the narrowest side: 6-1/16"
Height: 5"
Center to center bolt holes top to bottom: 4-3/8"
