    Trigger Pickup - FIE 3/8" Smooth STRAIGHT Crank Trigger Pickup non magnetic

    Thumbnail Filmstrip of Trigger Pickup - FIE 3/8" Smooth STRAIGHT Crank Trigger Pickup non magnetic Images

      Purchase Trigger Pickup - FIE 3/8" Smooth STRAIGHT Crank Trigger Pickup non magnetic

      SKU: FIE-CTPU-ST-26
      Trigger Pickup - FIE 3/8" Smooth STRAIGHT Crank Trigger Pickup non magnetic

      $191.00




      3/8" Smooth Straight 26" Crank Trigger Pickup

      • 100% coverage foil shield, twisted pair cable for maximum
      • noise rejection and covered with fire-sleeve.
      • Most other pickups use a braided shield which is only 85-90% coverage and many
      •  don't use twisted pair conductors for noise cancellation.
      • Our pickup coil is precision wound on a nylon bobbin for long life. Many competing pickups
      • have the delicate wire coil wound directly on the steel core. Eventually,
      •  clamping pressure and vibration will cause the coil to short out on the core causing their sensor to completely fail.
      • Every pickup is machine tested for signal quality and strength.

      These pickup sensors are a smooth 3/8" diameter and fit perfectly in the RCD-type pickup clamps.

      Pickups employ a separate 16" ground wire for shielding and maximum radio frequency and electromagnetic

      noise rejection. This can be trimmed to fit and grounded to the chassis or motor. The highest

       quality gold plated terminals in the plug make sure that the connection stays corrosion free.

      The length is measured from the very end of the stainless tube, to the tip of the connector at the other end.

      Extension cables are available in 2' and 3' lengths when required for your installation.


      Related Products


      Pickup - FIE Crank Trigger Pickup Extension Cable
      Pickup - FIE Crank Trigger Pickup Extension Cable 2' $41.00
      202015-12 Pickup - RCD LEFT Crank Trigger Pickup Holder - Short
      202015-12 Pickup - RCD LEFT Crank Trigger Pickup Holder - Short Leahy $48.00
      Pickup - RCD Crank Trigger Pickup Holder - Short Right Hand
      Pickup - RCD Crank Trigger Pickup Holder - Short Right Leahy $48.00
      Pickup - RCD Crank Trigger Pickup Holder - Threaded 3/8-24 Thread
      Pickup - RCD Crank Trigger Pickup Holder - Threaded RH for 8154 MSD Short Right MSD $51.00
      Pickup - Threaded RCD Crank Trigger Pickup Holder 3/8-24 thread
      Pickup - RCD 3/8" Threaded RCD Crank Trigger Pickup Holder - Short Left MSD 8154 $51.00
      8862 MSD Cable - Shielded Magnetic Pickup Cable, 6'
      8862 MSD Cable - Shielded Magnetic Pickup Cable, 6' $54.37
      24840 OIL PAN, PICKUP KIT For Building Pickup for FORD TITAN Pumps
      24840 OIL PAN, PICKUP KIT For Building Pickup for FORD TITAN Pumps $66.00
      Pickup - RCD Crank Trigger Pickup Holder - Plus 10 Leahy
      Pickup - RCD Crank Trigger Pickup Holder - Plus 10 Leahy $68.00
      Pickup - RCD Crank Trigger Pickup Holder -Threaded 3/8-24
      202015-04 Pickup - RCD Crank Trigger Pickup Holder -Threaded 7/8" Plus 10 MSD $70.00
      202015-05 Crank Trigger Pickup - 3/8" Smooth RCD Crank Trigger Leahy
      202015-05 Universal Crank Trigger Pickup holder - 3/8" Smooth RCD Crank Trigger Leahy $68.00

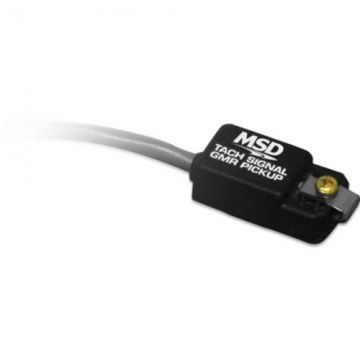

      Pickup - MSD Ignition Tach Signal GMR ( Giant Magn
