SKU: BLOWTHROUGH-8
Blow THROUGH TURBO or PRO-CHARGER Mechanical Injection

Recommended for 450 + Cu in Engines.

UP TO 2200 HP WITH 13.4  GPM PUMP  FOR ABOVE 2200  CHOOSE THE LIL BERTHA PUMP  ( WE WILL FIGURE THE GPM )  USUALLY 15- 15.25 17.25  GPM

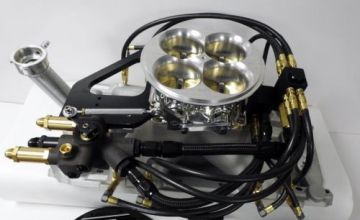

Full Pro charger / - -8 cylinder -   Assassinator 2600 cfm 4 butterfly billet unit.

Throttle Body Options :

1) 5" Whopper Billet single Butterfly - PREFERED FOR CARS THAT ARE NOT DRIVEN AROUND THE PITS

2) Also have a 2600 cfm "Assassinator" MULTI BUTTERFLY PROGRESSIVE  FOR PIT DRIVEABILITY  available for engines over 575 cu in

Sheet Metal Manifold Shown available from Hughes Performance  NOT INCLUDED

CAST  Manifold available as a drop-down option:

  1500 to 3500 HP mechanical system

Throttle Body:

• Assassinator Fuel Injector flowed for Pro Charger application. Progressive 4 butterfly
•  Blow Through Accufab Throttle Body 2600 CFM
• OR A Single butterfly Billet Throttle Body w 122mm Butterfly
  INCLUDES:
• Aeromotive or Waterman Fuel Pump Depending on Boost.
• available in    , 9, 12   13   15   16   17   19   22    25   gpm
• -16 AN Inlet or 1-1/2" Slip on if Preferred.
• Pump Drive - Either Belt or Timing cover *  or can Drive from the Pro Charger
•  Alkydigger Billet K Valve w -10 In and out Ports
•  Permanant Fuel filter 60 micron after the pump
• -8AN  3 Way Fuel Shut-Off Valve
• Shut off cable and kit
• Pills for Bypass
•  Dual Nozzle Bodies
• 16- Nozzle jets
• Port nozzles Check Valve.
• Dual   Junction Blocks
• 16 Nozzle hoses - Normal length Will be for a single plane manifold- We will do custom lengths  .
• Options:

• Pro-filer Single plane manifold for BB Chev, Big Chief, or SB Chevy 23 degree

https://www.alkydigger.net/TechInfo/set-up-instructions-for-blow-through-mechanical-systems/
