APD & ATM CARBURETORS & PARTS- LINKAGE LINES ADAPTERS HATCARB ATM APD
APD Pump Diaphragm For All Regulators And Internal Bypass Pumps

APD Pump Diaphragm For All Regulators And Internal Bypass Pumps

Thumbnail Filmstrip of APD Pump Diaphragm For All Regulators And Internal Bypass Pumps Images

Purchase APD Pump Diaphragm For All Regulators And Internal Bypass Pumps

SKU: APD-800295
APD Pump Diaphragm For All Regulators And Internal Bypass Pumps

$17.99

Qty

Description

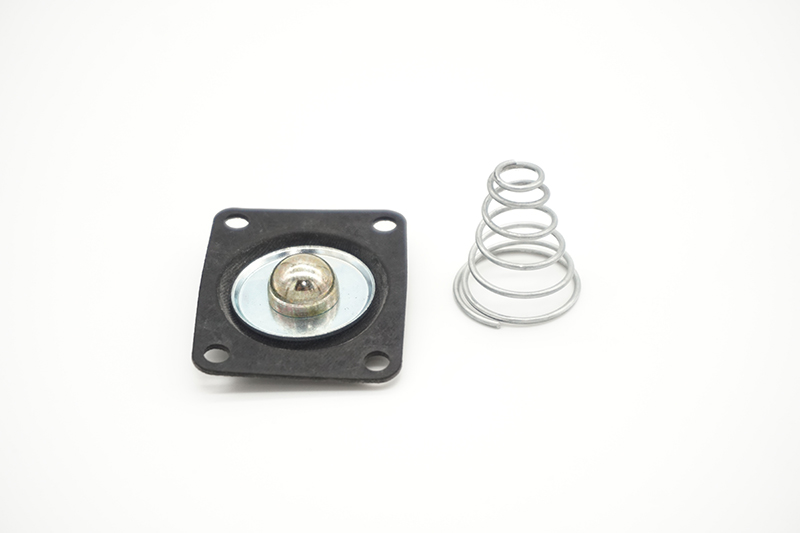

APD Diaphragm For All Regulators Made by APD, Even The Internal Bypass Regulator On The .600 Gear Fuel Pumps.

NOTE*** SPRING NOT INCLUDED. DIAPHRAM ONLY.

FOR BOTH ITEMS IN KIT, SEE PART # APD-706025
