18390     Brushless 3.5 Spur Gear 15 Gallon Fuel Cell with Variable Speed Controller

P/N 18390 Brushless 3.5 Spur Gear 15 Gallon Fuel Cell with Variable Speed Controller
Pro-Series Performance Plus Advanced Technology

15-gallon Racing Fuel Cell with 3.5 Brushless Gear Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.

• Baffled design keeps fuel at the pump inlet
• Fluted pickup with integrated 100-m prefilter
• Fuel Cell Dimensions: 20″w x 18″l x 10″h
• The Pro-Series performance you expect and more:
  • Fuel injected engines: GAS
    up to 2400 FWHP – naturally aspirated
    up to 1800 FWHP – forced air induction
  • Carbureted engines: GAS
    Up to 2600 FWHP – naturally aspirated
    Up to 2000 FWHP – forced air induction
  • Fuel injected engines: E85
    up to 1680 FWHP – naturally aspirated
    up to 1260 FWHP – forced air induction
  • Carbureted engines: E85
    Up to 1820 FWHP – naturally aspirated
    Up to 1400 FWHP – forced air induction
  • Fuel injected engines: METHANOL
    up to 840 FWHP – naturally aspirated
    up to 630 FWHP – forced air induction
  • Carbureted engines: METHANOL
    Up to 910 FWHP – naturally aspirated
    Up to 700 FWHP – forced air induction
• Lighter than the traditional Pro-Series pump.
• Reduced current draw at higher, EFI pressures.
• Extended service life in methanol and ethanol.
• New integral spur-gear pumping mechanism.
• 90-PSI continuous operating pressure and up to 150-PSI peak pressure, base plus boost.
• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.
• ORB-10 outlet port.
• Requires straight 12-VDC to 16-VDC power supply.
• Not compatible with pulse modulated systems or fuel pump speed controllers.
• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

EFI Rated flow of 1,250 lbs./hr. @ 40 psi, 13.5 volts
Carb Rated Flow of 1,350 lbs./hr. @ 9 psi, 13.5 volts

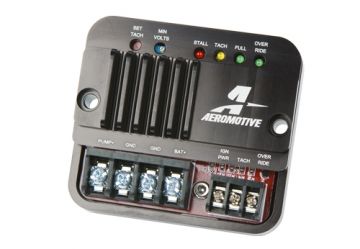

Aeromotive’s True Variable Speed Controller offers the advantages of built-in pump speed control via a dedicated 0-5V analog DC input signal. The Controller capitalizes on our existing brushless technology by reducing fuel flow during low engine demand and decreasing an already low current draw, therefore minimizing both motor heat the introduction of environmental via reduced fuel recycling.

Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
