Hi Flow BILLET AD-4024 Billet K Style Valve - Blown Alcohol- Extra mounting area - up to 60% Nitro ok -10 -10
Thumbnail Filmstrip of Hi Flow -10 BILLET 4024 Billet K Style Valve - Blown Alcohol- Extra mounting area - Images
-10 inlet and outlet to accommodate Flow Meters

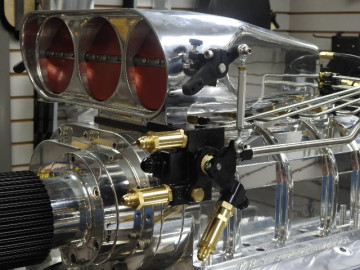

NEW- Alkydigger Hi-Flow Blown Alcohol K Style Billet Barrel Valve ( K Valve)
Fits all Enderle Injectior Hats ( Bird and bug has to be tapped to 1/4" Thread for mounting
flows more than the cast version - used for up to 60% Nitro
use 6001-150 for top check valve or 90 for smaller
use 6001-5 for idle check valve or 6001-7 for Big boosted engines
Uses Enderle Screw in Pills
Alkydigger K-style Blown alcohol Metering Valve Assembly is machined from Billet aluminum and Hard anodized.
Complete with:
Metering Piston ( Same as Enderle )
AN Fittings - Linkage arm
-10 Inlet Countoured for more inlet flow ( tell us if you want a -8 Fitting or -10 )
Has provisions for ports nozzles and pump saver check valve.-Rear mount option so you can use it to return to dist block if desired
Commonly used for blown alcohol and nitro applications.
Available in blown Alcohol/Nitro / Unblown /
Drop down menu to add the check valves.
For Nitro 50% or more see 4025A
